860-SS-080-ICE

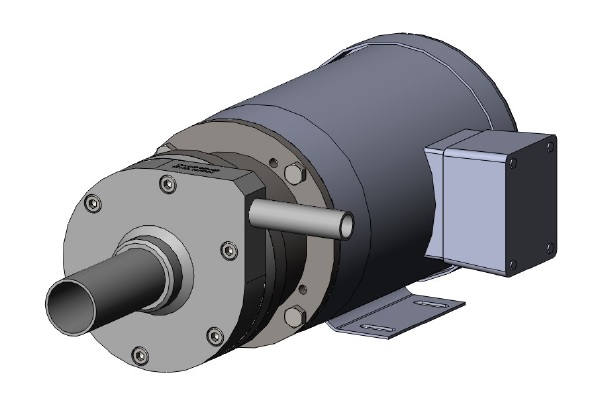

LPA Model 860-SS-080-ICE – Built for Extreme Performance
Introducing the next generation of liquid refrigerant pumps, designed to deliver unmatched reliability in ultra-low temperature environments. The 860-SS-080-ICE ensures smooth, efficient operation for demanding applications.
What Makes It Different?
- Solid Stainless Steel Construction Precision-machined from 316 stainless steel for superior strength and durability at temperatures down to −70 °C. / -94F
- Optimized Design Flat housing surface makes ease of thermal insulation covering. Engineered for consistent performance under harsh conditions, reducing downtime and maintenance. Engineered for low temperature fluid heat transfer.
- Versatile Applications For CO₂ and other low-temperature refrigerants, supporting advanced cooling systems.
- Lightweight Support Robust aluminium bracket secures the pump head to the motor without adding unnecessary weight.
Predicted production launch date January 2026
- Production era – JAN 2026
- Trace serial No’s from SS-[ ]
- Design pressure: PS 1,160 psi PT 1,660 psi
- Motor p/n: 860-10-STD-B (50/60hz)
- Motor p/n: 860-10-VSD-B (40/60hz)
- Inlet SSP Sch. 10, 1-1/4″, Outlet SSP Sch. 10, 1/2″
- Power .6hp 60hz / .5hp 50hz
- Voltage 208-230/460V //575V 3ph
- Reduces energy consumption compared to traditional vapor-compression chillers.
- Provides a stable cold source for continuous or peak cooling loads.
